KEP-3157 Watch List

Why KEP-3157

In large clusters, the LIST+WATCH patterns would cause 2 problems:

1. Memory Explosion: Full LIST requests load all resources into memory at once. With thousands of resources, this causes gigabytes of memory consumption per request, risking API server crashes.

2. Stale Reads: Traditional LIST uses RV=“0”, which reads from watchCache without consistency guarantees, potentially serving stale data.

KEP 3157 addresses these issues by introducing a streaming-based approach that:

• Ensures controllers receive consitent, up-to-date data by RV="", avoid reading stale data
• Replace memory-intensive LIST+WATCH pattern with single streaming WATCH request

HA with Stacked etcd topology

KEP-3157 focuses on:

• Memory Efficiency in watchCache
• Consistency Guarantee between watchCache across the cluster
• Prevent controller watcher read the stale data.

  graph BT
    subgraph ETCD_CLUSTER["etcd cluster"]
      ETCD1[(etcd<br/>actual data store)]
      ETCD2[(etcd<br/>actual data store)]
      ETCD3[(etcd<br/>actual data store)]
    end

    subgraph API_SERVER_1["API Server 1"]
      WC1[watchCache 1]
    end

    subgraph API_SERVER_2["API Server 2"]
      WC2[watchCache 3]
    end

    subgraph API_SERVER_3["API Server 3"]
      WC3[watchCache 3]
    end

    LB[Load Balancer]

    API_SERVER_1 <--quorum read / heartbeat--> ETCD1
    API_SERVER_2 <--quorum read / heartbeat--> ETCD2
    API_SERVER_3 <--quorum read / heartbeat--> ETCD3

    LB --> API_SERVER_1
    LB --> API_SERVER_2
    LB --> API_SERVER_3

    CW1[Controller watcher1] <--WATCH RV=&quot;&quot;--> LB
    CW2[Controller watcher2] <--WATCH RV=&quot;&quot;--> LB
    CW3[Controller watcher3] <--WATCH RV=&quot;&quot;--> LB
    CW4[Controller watcher4] <--WATCH RV=&quot;&quot;--> LB

    CTRL1[Controller 1] --> CW1
    CTRL2[Controller 2] --> CW2
    CTRL3[Controller 3] --> CW3
    CTRL4[Controller 4] --> CW4

    style WC1 stroke:#2196f3,stroke-width:3px
    style WC2 stroke:#2196f3,stroke-width:3px
    style WC3 stroke:#2196f3,stroke-width:3px

    style CW1 stroke:#4caf50,stroke-width:3px
    style CW2 stroke:#4caf50,stroke-width:3px
    style CW3 stroke:#4caf50,stroke-width:3px
    style CW4 stroke:#4caf50,stroke-width:3px

ResourceVersion Semantics

RV=""

• FLow: etcd Quorum Read
• Why CP
  • Performs quorum read from etcd to ensure strong consistency, but may block during network partitions.

RV="0"

• Flow: Read Watch Cache, if empty fall back to etcd Quorum Read
• Why AP
  • Serves from apiserver’s watch cache for immediate response and high availability, tolerating eventual consistency.

Consistency Guarantee Mechanism

RV in the watchCache could be different from the one in controller watch cache (CW), due to the wirting speed of each api-server.

If Controller 2 call the RV = “0”, it will get the data with RV = 95, which is the root cause of stale read.

etcd cluster
    ↓
    ├─→ API Server 1 → watchCache 1 (RV=100) → Controller 1
    ├─→ API Server 2 → watchCache 2 (RV=95)  → Controller 2
    └─→ API Server 3 → watchCache 3 (RV=100) → Controller 3

KEP-3157 Solution

To address memory exhaustion issues, KEP-3157 introduces a new approach: when a controller establishes a watch connection, it can specify RV="" with sendInitialEvents=true to ensure a quorum read from etcd for consistent data.

This design introduces an interesting challenge: the watchCache’s RV may differ from the target RV obtained from etcd. To handle this discrepancy, the Beta version implements sophisticated strategies:

• Pre-check RV difference: If (targetRV - watchCache.currentRV) >= 1000 (the buffer size), synchronization might timeout
• Graceful handling: If the bookmark event exists in the buffer, perform a soft-close; otherwise, execute a hard-close
• The goal is to avoid scenarios where the gap is too large to complete synchronization

If the gap is excessive and timeout occurs, the cacheQatcher reconnects to a different API server. Since each connection performs a quorum read, this ensures data freshness - the secret behind the Consistency Guarantee Mechanism.

Synchronization completion is signaled by a bookmark event.

For detailed implementation, see the KEP-3157 document.

Why Streaming Alleviates Memory Pressure?

Watch-List uses a streaming approach that sends objects one-by-one instead of preparing the entire response in memory. Combined with RV="" initialization (quorum read), it ensures:

1. Consistent baseline: Each controller watchCatch establishes a consistency checkpoint via quorum read
2. Memory efficiency: Only one copy in watchCache, streamed to all watchers
3. No time-travel: Even when switching API servers, the RV-based mechanism prevents reading older data than previously observed

Traditional LIST approach

Memory per request = O(object_count × object_size × 5)

Watch-List approach

Memory = O(1 shared cache + small per-watcher buffers)

The Hidden truth

Env setup

Through extensive testing across Kubernetes versions, I discovered that:

• Kubernetes 1.32.x: WatchList feature gate is enabled by default, but memory usage remains HIGH (~20GB)
• Kubernetes 1.33.x: WatchList disabled by default, but introduces StreamingCollectionEncoding , achieving the promised LOW memory (~2GB)
  • a 90% reduction - this is the real game-changer, so I pick this one as experment environment
• Kubernetes 1.34.x: WatchList is stable which is not allowed to mutated to false

Test Workload

• Test Resources: a custome CR iwht 1MB * 100
• Watcher: 20
• Expected memory usage:
  • O(watcherspage-sizeobject-size5) to O(watchersconstant)
  • watch list off, O(watcherspage-sizeobject-size*5): 20 * 1MB * 100 * 5 = 10GB
  • watch list on, O(watchers*constant), constant around 2 MB: 20 * 2MB = 400MB

Result

• 13GB -> 1G, over 90% memory usage reduce!

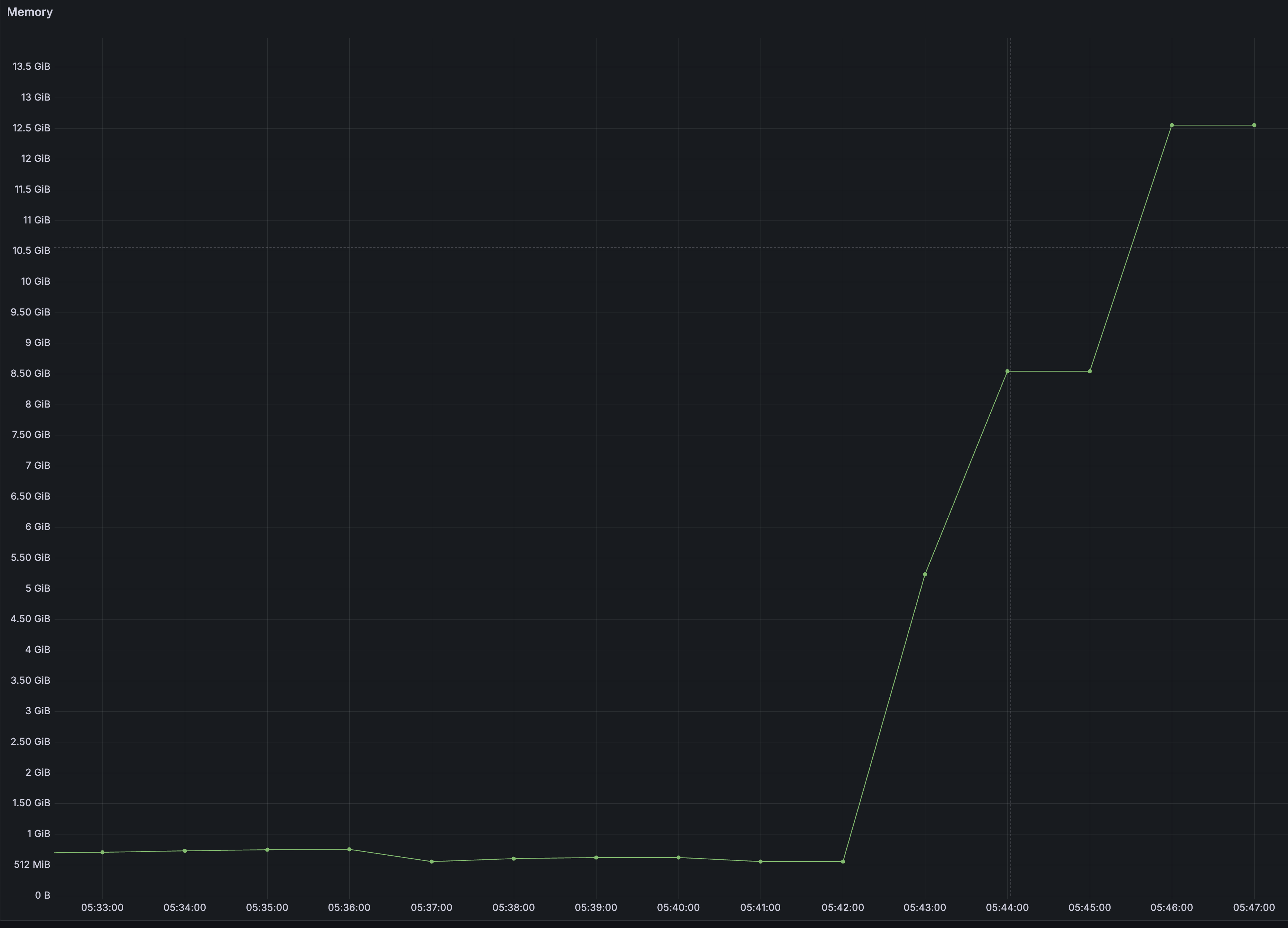

Result from watch list off, apiserver memory peak ─ 700MB -> 13GB Result from watch list on, apiserver memory peak ─ 700MB -> 1GB

Informer-Driven API Server Load Simulation

To accurately simulate server pressure, here is how I implement

• Use pure informer to simulate the controller
• Drops updates immediately via SetTransform(return nil) to eliminate client-side memory pressure
• Use Prometheus to collect the metrics

Key Takeaways

1. Watch-List uses RV="" with sendInitialEvents=true initialization to prevent stale reads
2. Even if a controller’s watch connection times out during sync, the next connection will read up-to-date data (unless all API servers fail)
3. For high-QPS, freshness-tolerant reads, RV="0" serves from the watch cache with low latency
4. KEP-3157 introduces resourceVersionMatch=NotOlderThan to prevent reading data “older than what you already saw” when the load balancer switches between API servers
5. ⚠️ Implementation Evolution: KEP-3157 alone is NOT sufficient for memory optimization. It requires StreamingCollectionEncoding for true memory savings (introduced in Kubernetes 1.33)
6. To eliminate stale reads and reduce API server memory pressure, upgrade to Kubernetes v1.34 where both KEP-3157 and streaming encoding are stable

Reference

• KEP-3157
• Informer-Driven API Server Load Simulation Implementation Repo

Note

• Bookmark Event — a Kubernetes watch event that notifies the client of the query object’s resource version.
